Dry Cure Ccv Cable Production Line

Link Copied

MOQ : 5 piece

Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Pay-off: 2600 to 3600mm
Accumulators: 1200mm to 2100mm
Click to view more

Product Details

Metering Capstan
1200mm to 3000mm
Extruder Combinations
65mm/120mm/65mm, 65mm/150mm/80mm, 80mm/200mm/100mm
Splice Box
150mm, 200mm, 250mm
Curing Zone
6 to 12 zones based on line speed requirement and space availability.
Cooling Zone
10nos and More Based On Cooling Requirement and Space Availability.
Pullout Capstan:
1200mm to 3000mm
End Seal:
100mm to 200mm
Helping Caterpillar:
1200mm and 1500mm.
Take up
2600 to 3600mm
Cooling Length
As required, based on space availability

Description: The DRY CURE CV is an advancement of Royle’s 1958 Patent of the Catenary Continuous Vulcaniser (CCV) Technology. With 100s of CCVs running all over the world, Royle’s pioneering patent is now universal DRY CURE CV lines are currently manufacturing Cables from 6KV to 220KV.

Royle, remains as the only company that manufacturers CCVs by precisely bending the catenary pipes to the specific design coordinates of the catenary formulae. This manufacturing capability is superior to other methods that use wedges between pipes to approximate the catenary curve, as that alternate method can cause scuffing of cables during the curing process.

Royle provides lines that can efficiently perform triple extrusion process, precisely applying the inner semiconductor layer, insulation layer, and outer semiconductor layer in a single pass.

The technology edge spreads to different aspects. For instance, the potential scrap during the starting and stopping of the line is controlled by Royle’s process guidance and Royle’s Autoline system in conjunction with Royle’s time-tested Cure-Cool Simulation software, which is yet another proficiency that our customers can benefit from

Yes! I am interested

  • Additional Images

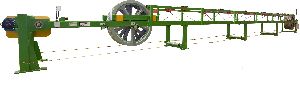

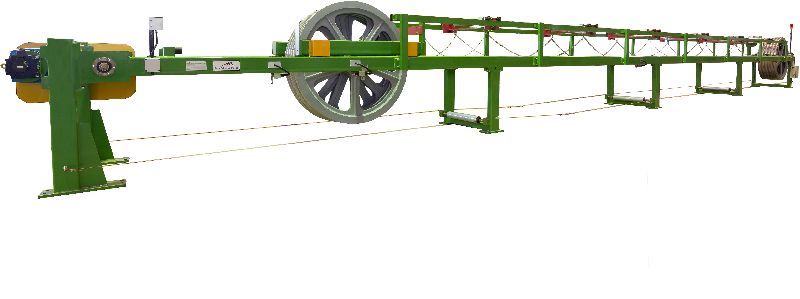

  • Accumulator

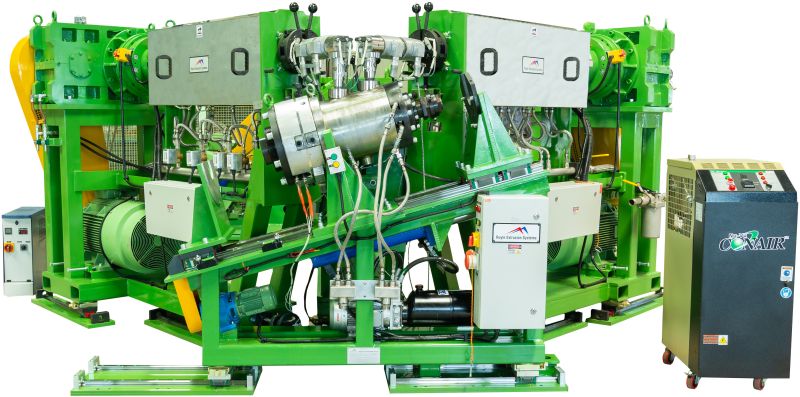

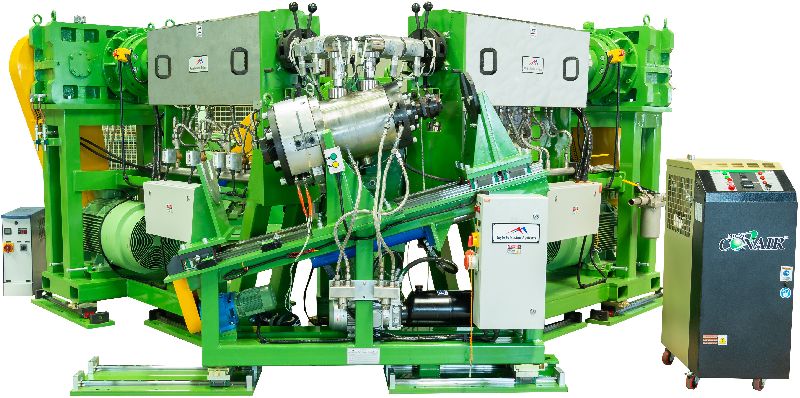

  • CV Line Extruders

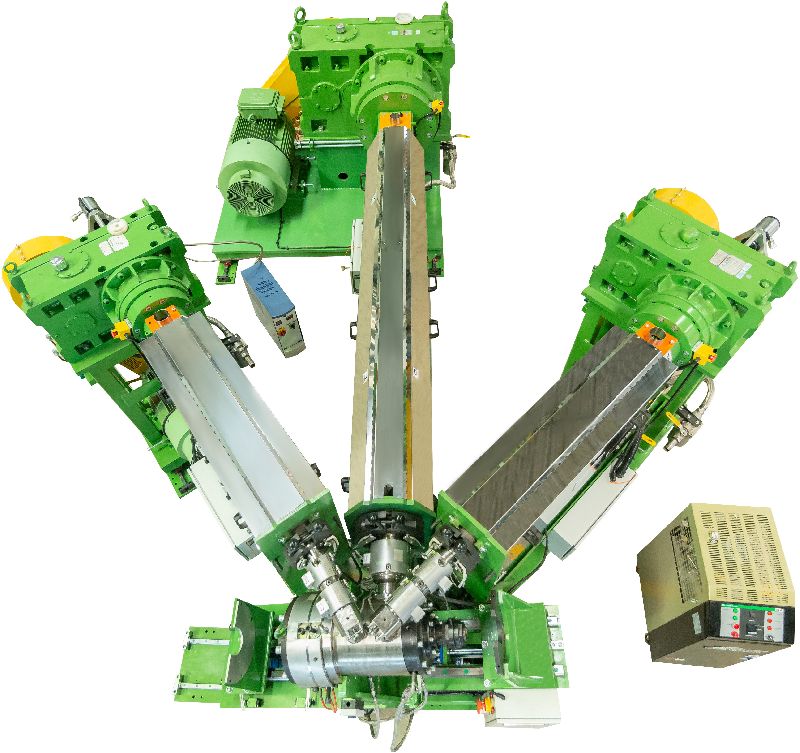

  • CV Line Extruders 2

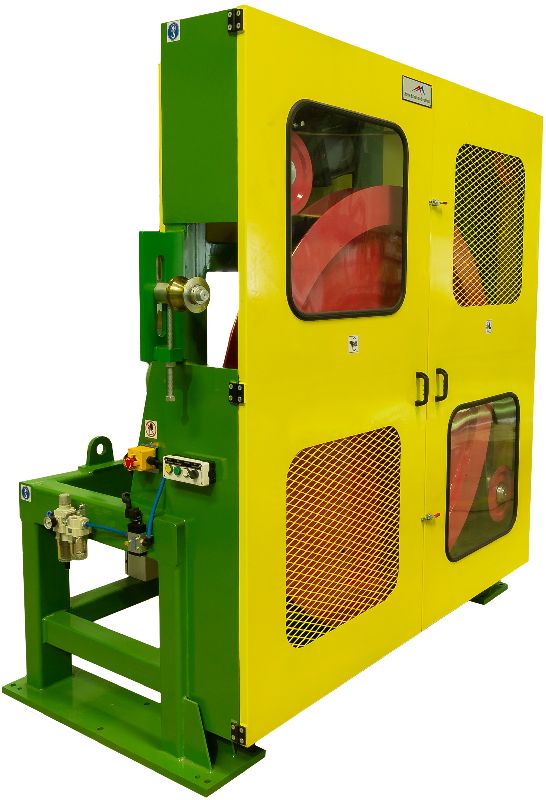

  • Metering Capstan 1

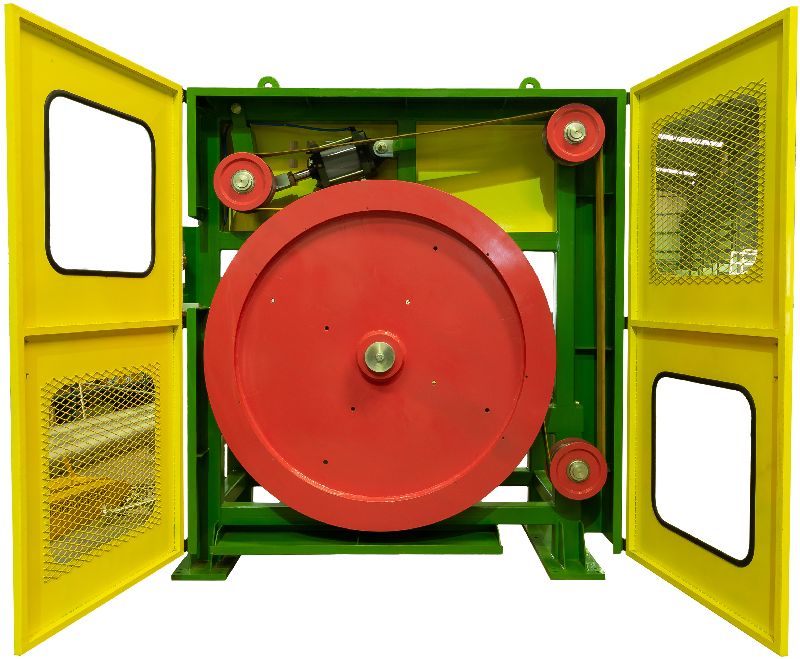

  • Metering Capstan 2

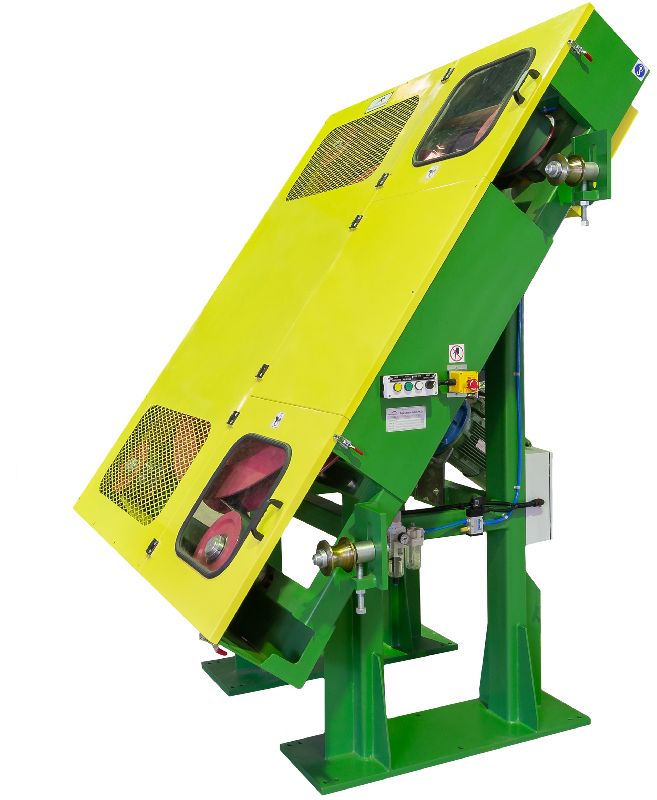

  • Pull Out Capstan

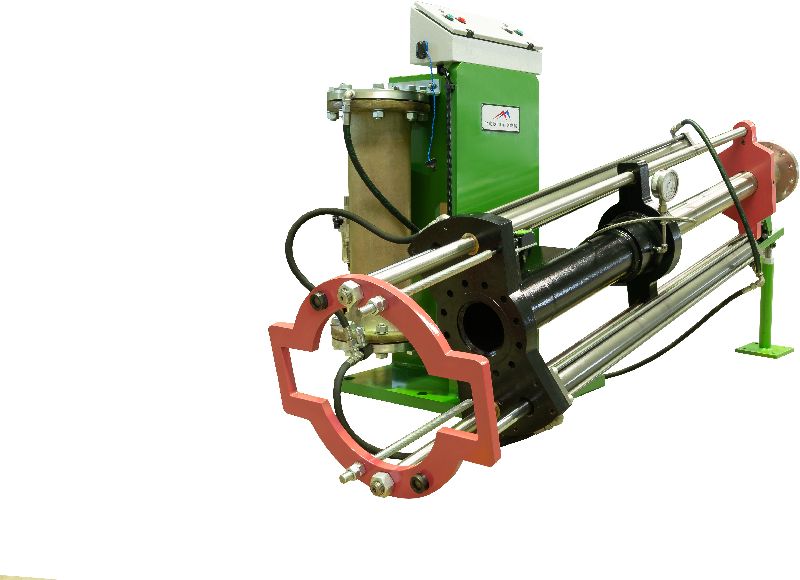

  • Splice Box

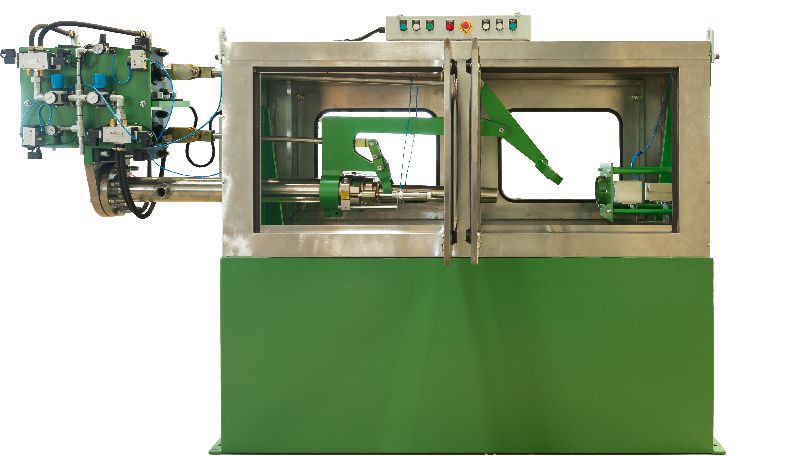

  • Water Seal
