Lv/MV Rubber Cable Production Line

Link Copied

MOQ : 5 Piece

Business Type	Manufacturer, Exporter, Supplier
Country of Origin	India
Brand Name	Royle Extrusion
Pay-off:	630mm to 3600mm
Click to view more

Product Details

Accumulators:

300mm to 2100mm

Metering Capstan

630mm to 3000mm

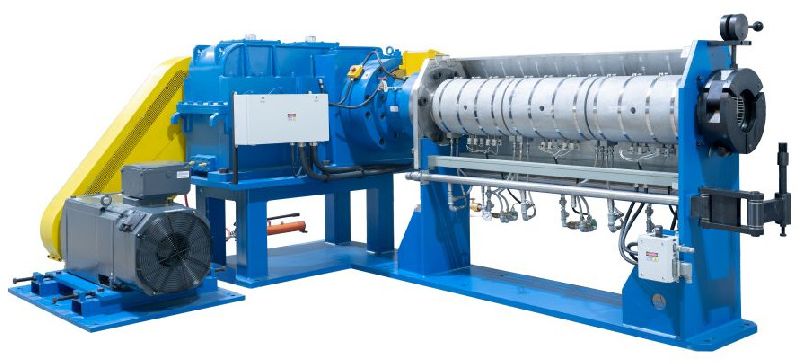

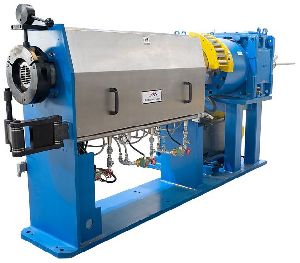

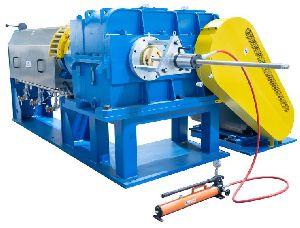

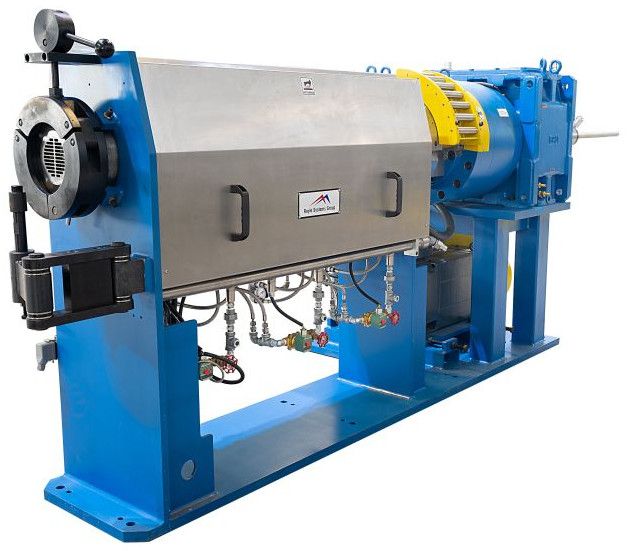

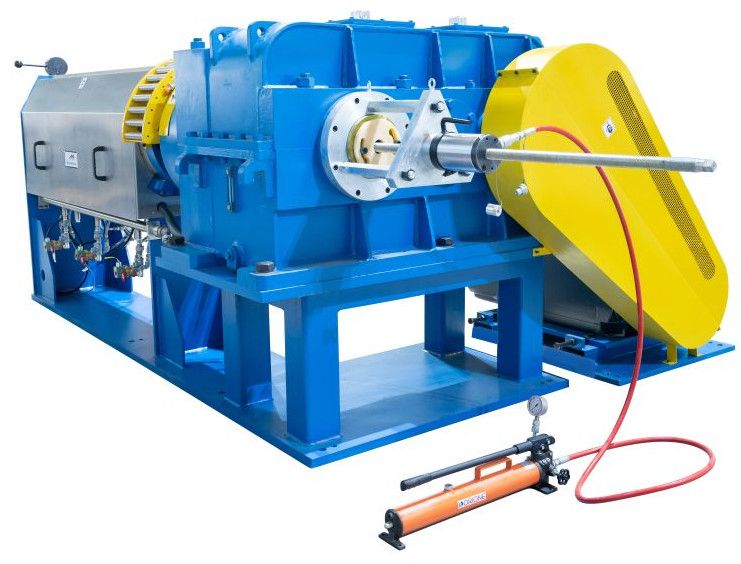

Extruder

Based on requirement Single, Dual, Triple or Tandem configuration

Splice Box

100mm, 150mm and 200mm.

Curing / Cooling

Options of 3 Steam-cure- Water Cool Ratios, based on line speed requirement, cable size and space availability.

Cooling Length

10 Nos. and more based cooling requirement and space availability.

Pullout Capstan

1200mm to 3000mm

End Seal

90mm to 200mm

Helper Caterpillar

1200-1500mm

Take up

630 to 3600mm

Description :- Royle, since 1855 have been in extrusion with several path breaking innovations ahead of times. Royle’s Patented 1885 SCREW TYPE EXTRUDER marked a pioneering milestone in the history of extrusions and thereby to the wire and cable industry. Royle still manufactures the 1885 Patented Extrusion Line(with its advancements integrated on the way.).

Royle has continuously developed the technology and has largest number of Rubber CVs operating all around the world. Royle provides Single, Dual, Triple or Tandem configuration systems designed for the production of Rubber insulated LV/MV cables. Steam curing implemented in Rubber CV lines is capable of curing all the rubber formations. This advanced cable production line efficiently performs extrusion process, precisely applying the layers
